Half Bridge Strain gauge

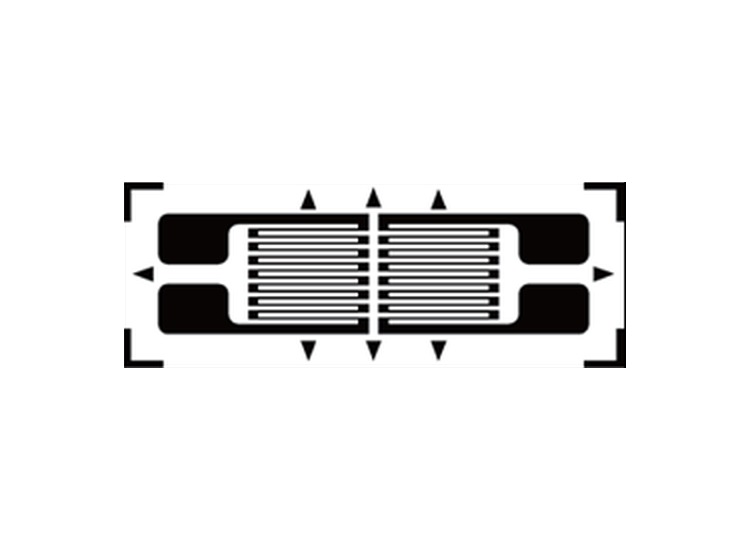

  • Strain gauge with two linear measuring grids positioned parallel to each other on one backing.
  • Rated Resistance available: 350 - 2000 Ohm
  • Constantan or karma measuring grid material
  • Special polyimide, PEEK or modified phenolic backing material
  • Available for working temperature -200 ~ +250 Celsius
  • Various temperature compensations available (STC)
  • Various creep codes available
  • K-factor (or gauge factor): 1.8 ~ 2.3
  • Cycles: > 10 million
  • View the datasheet for all options.
