Cleaning loadcell with 80°C and 90 Bar: IP69K
- IP69K ingress protection
- Stainless steel single point loadcell
- ATEX is optional
- OIML Certified C3, C4, C4MR, C5

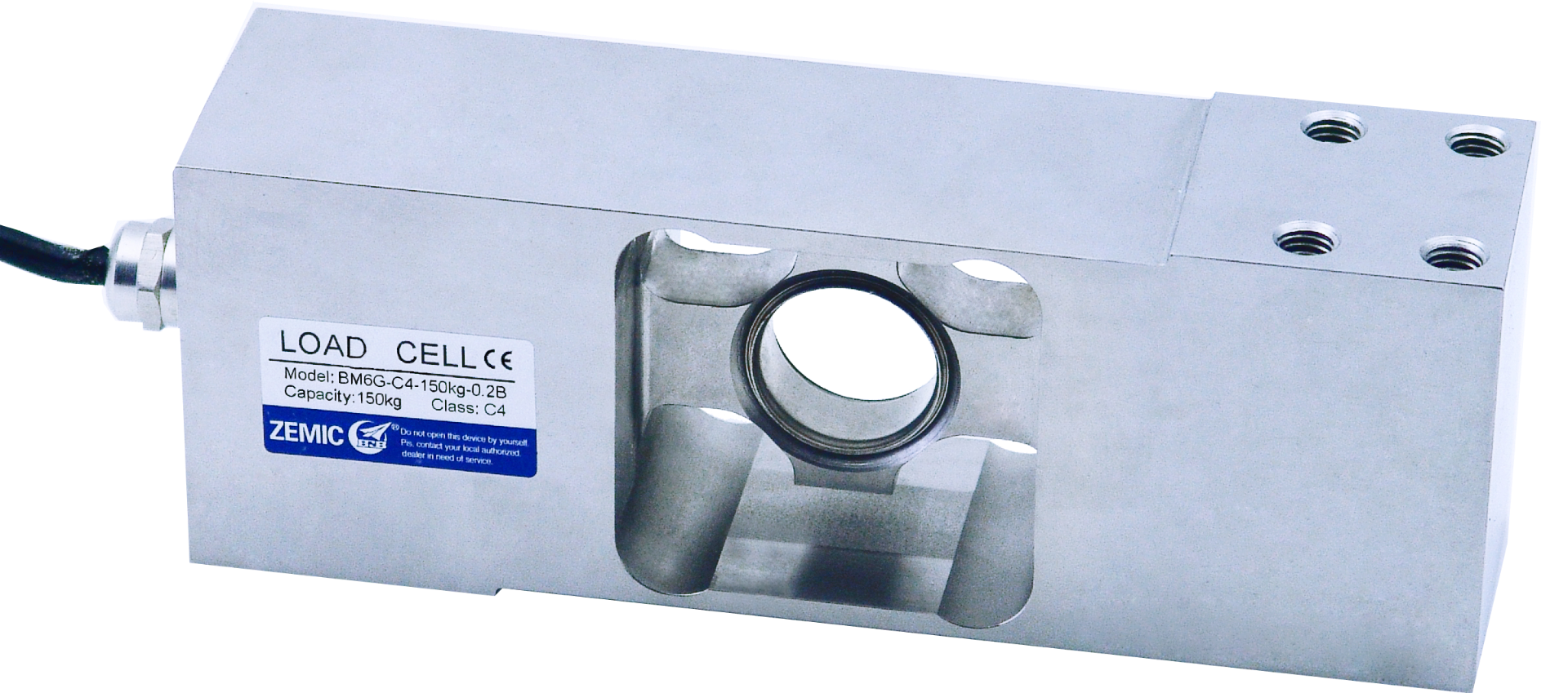

The single point load cell BM6G from Zemic has been awarded the OIML R60 approval for ”legal-for-trade” applications
The PTB in Germany has examined and tested the BM6G and concluded that an approval with a Y-value of 10000 for standard C3 is applicable and a Y-value of 15000 for C3 Multiple Range (MR) should apply. Furthermore a Z-value of 12000 is allowed to be used for both C3 and C3 MR.
OIML approved IP69K loadcell
Approved capacities from 10 kg to 500 kg are available. The BM6G has been corner corrected to fit platform sizes up to 400 x400 for 10 to 50kg and 800 x 800 mm for 100 to 500kg.
Excellent for weighing devices in the food industry
The unique selling point for this load cell is the combination of stainless steel and IP69K. IP69K is the Ingress Protection classification for devices that can be cleaned by high pressure water jets. This combination makes it excellent for weighing devices in the food industry.
Certification
The BM6G load cell has several other approvals amongst them EMC, NTEP and ATEX.
An ATEX approval is optional.
